Global Medical Fluoroscopy Component Manufacturing: Engineering White Paper & Technical Analysis
In modern interventional radiology, orthopedic trauma surgery, cardiology, and minimally invasive procedures, real-time dynamic fluoroscopy serves as the cornerstone of intraoperative guidance. As medical device Original Equipment Manufacturers (OEMs) face expanding clinical demands for sub-millimeter image resolution alongside rigorous radiation dose reduction protocols (ALARA – As Low As Reasonably Achievable), the structural, electrical, and optical components powering fluoroscopy suites must meet unprecedented mechanical and radiolucent thresholds.
This technical white paper explores the engineering principles, material selection criteria, regulatory requirements (including CE Marking under EU MDR 2017/745 and FDA 510(k) clearances), and OEM procurement strategies governing high-performance fluoroscopy equipment components and sub-assemblies.
Critical Engineering Domains in Fluoroscopy Subsystems
A high-end fluoroscopic system represents an integrated synergy of electromechanical positioning, high-voltage X-ray pulse generation, radiolucent patient support structures, dynamic digital detectors, and real-time image signal processors. A failure in any single component compromises image fidelity, increases scattered radiation risk, or leads to surgical downtime.
Carbon-Fiber Radiolucency & Structural Mechanics
Carbon fiber reinforced polymers (CFRP) are critical for operating table tops, headrests, and skull clamps. High-purity epoxy resins combined with ultra-high modulus carbon weave achieve low X-ray attenuation coefficients (< 0.5 mm Al equivalent at 100 kVp), minimizing radiation dose while supporting patient payloads over 250 kg without beam artifacts or flexure deflection.
High-Frequency Pulse X-Ray Generators

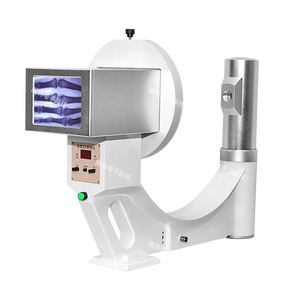

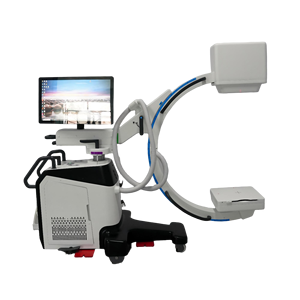

Modern mobile C-arms and stationary fluoroscopy tables rely on compact high-frequency generators (up to 100 kHz pulse width modulation). Precise grid-controlled monoblock generators dissipate heat rapidly, minimize ripple voltage (< 1%), and deliver short-duration micro-pulses that eliminate motion blur while lowering absorbed skin dose during extended cardiac or spine procedures.
Dynamic Flat-Panel Detectors (FPD) & Image Intensifiers
Transitioning from traditional Vacuum Image Intensifiers (VII) to Amorphous Silicon (a-Si) and CMOS dynamic flat-panel detectors requires ultra-clean optical bonding, lead-free radiation shielding housings, and high-speed GBit Ethernet / PCIe data interfaces capable of uncompressed 30 to 60 fps real-time image streaming.
Motorized Multi-Axis Positioning Systems
Four-direction floating table tops and motorized C-arm gantry components incorporate low-backlash planetary gearboxes, high-resolution optical encoders, and electromagnetic braking systems to guarantee repeatable sub-millimeter positioning accuracy required for 3D Cone Beam CT (CBCT) reconstructions.
Engineering Specifications: OEM Component Architecture Comparison
Selecting the optimal components for fluoroscopic system integration requires evaluating material properties, radiation attenuation, electrical isolation, and mechanical load tolerances. Below is an engineering benchmark breakdown of core fluoroscopy structural and electronic components manufactured within our contract manufacturing facilities.

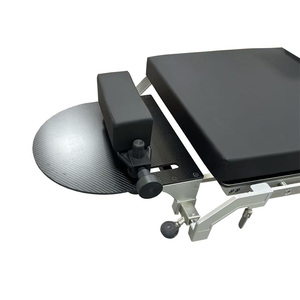

| Component Category | Material / Construction | Key Technical Metric | Radiolucency (Al Eq.) | Regulatory & Testing Standards |
|---|---|---|---|---|
| Surgical Head Frames & Skull Clamps | Autoclavable Structural Carbon Fiber & PEEK Composite | 360° Artifact-Free Imaging, 300 N Pin Fixation Force | < 0.45 mm Al @ 80 kVp | CE Mark, ISO 10993 (Biocompatibility), IEC 60601-1 |
| C-Arm High Voltage Generators | Monoblock Oil-Insulated Tank with Solid-State Inverter | 40 kHz - 100 kHz Frequency, 3.5 kW - 15 kW Output | N/A (Lead Shielded) | IEC 60601-2-54, CE MDR Class IIb, FDA 21 CFR 1020.30 |
| Fluoroscopy Table Tops | Monocoque Carbon Fiber Core with Foam Matrix | Distributed Load > 280 kg, Longitudinal Slide 800 mm | 0.65 mm - 0.85 mm Al | ISO 13485, CE Class I, Deflection Test ISO 60601-2-46 |

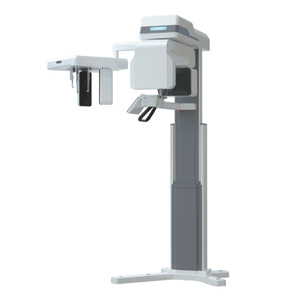

| 3D Dental & ENT CBCT Gantry Components | Precision Machined Aircraft Aluminum (6061-T6) & Laser Alignment | Rotational Accuracy < 0.05°, Real-Time Laser Guidance | Structural Member | CE Class IIa, IEC 60825-1 (Laser Safety), RoHS 3 |

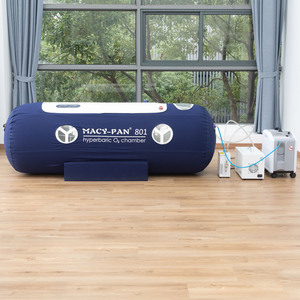

| Hyperbaric Veterinary Fluoroscopy Chamber | Biocompatible Medical TPU & High-Clarity Acrylic Windows | 1.3 ATA to 1.5 ATA Working Pressure, 100% Sealed | Low Attenuation TPU | ISO 13485 Veterinary Standard, CE Compliance |
Global Fluoroscopy Equipment Procurement Trends (2026–2032)
The global fluoroscopy market is undergoing rapid technological restructuring driven by clinical shifts toward minimally invasive surgeries (MIS), hybrid operating rooms, and ambulatory surgical centers (ASCs). Healthcare systems and OEM purchasing teams are re-evaluating supply chain resilience, component standardization, and low-dose imaging capabilities.
1. Rapid Transition to CMOS Dynamic Flat-Panel Detectors
Procurement mandates are heavily tilting away from legacy X-ray image intensifiers toward CMOS-based dynamic flat-panel detectors. CMOS sensors offer smaller pixel pitch, zero lag, higher frame rates at ultra-low radiation doses, and superior spatial resolution necessary for micro-vascular catheter guidance and pediatric orthopedics.
2. Modular Radiolucency Accessories for Hybrid ORs
Modern hybrid operating suites demand multi-functional surgical tables. Procurement managers are prioritizing carbon-fiber modular attachments (such as specialized thyroid headrests, shoulder positioners, and traction frames) that allow rapid conversion between general open surgery and intraoperative fluoroscopic imaging without creating image artifacts.
3. AI-Assisted Low-Dose Pulsed Fluoroscopy Subsystems
Original Equipment Manufacturers are integrating artificial intelligence directly into generator control loops. By predicting patient body habitus attenuation and adjusting kVp/mA parameters in real time during continuous or pulsed fluoroscopy, new system builds achieve radiation dose reductions of 40% to 70% while maintaining signal-to-noise ratio (SNR).
4. CDMO Consolidation & Turnkey OEM Manufacturing
Leading medical device OEMs are consolidating vendor tiers in favor of contract development and manufacturing organizations (CDMOs) capable of providing end-to-end solutions. From raw carbon-fiber lay-up and precision CNC machining to ISO Class 7 cleanroom sub-assembly and CE compliance documentation, CDMO partnerships mitigate supply chain disruption risks.
Enterprise OEM & CDMO Advantages: Why Partner With Us
As an industry-leading Contract Development and Manufacturing Organization (CDMO) with over a century of combined manufacturing excellence and over 1.2 million square feet of state-of-the-art production facilities globally, our enterprise provides end-to-end engineering support for fluoroscopy system manufacturers worldwide.
ISO 13485:2016 & FDA Registered Quality Infrastructure
All fluoroscopy components and assemblies are manufactured under stringent ISO 13485 certified quality management systems, ensuring full traceability, Device History Records (DHR), and compliance with FDA 21 CFR Part 820 regulations.
CE Marking & EU MDR Regulatory Support
Our regulatory affairs team assists global partners in navigating EU MDR (2017/745) technical file creation, risk management dossiers (ISO 14971), and biocompatibility testing (ISO 10993) to accelerate market launch across European markets.
Advanced Carbon Fiber Composite Compression Molding
We utilize specialized autoclaves and automated carbon-fiber placement technology to manufacture ultra-lightweight, high-rigidity radiolucent accessories with uniform density and zero internal voiding, guaranteeing optimal X-ray transparency.
ISO Class 7 & Class 8 Cleanroom Assembly
Sensitive optical sensors, digital imaging detectors, and high-voltage electrical sub-assemblies are processed in controlled cleanroom environments to eliminate particulate contamination and preserve dielectric strength.
Precision Metal Additive Manufacturing & CNC Machining
For complex C-arm joints, motorized table gears, and titanium skull clamp mechanisms, our additive manufacturing (3D metal printing) and 5-axis CNC machining capabilities ensure micro-inch dimensional tolerances.
Global Supply Chain Resilience & V&V Testing
With 8+ global manufacturing facilities, we deliver localized supply chain redundancy, integrated business planning, and complete Verification & Validation (V&V) mechanical fatigue testing.
